XL-D SG (H-309-SG)

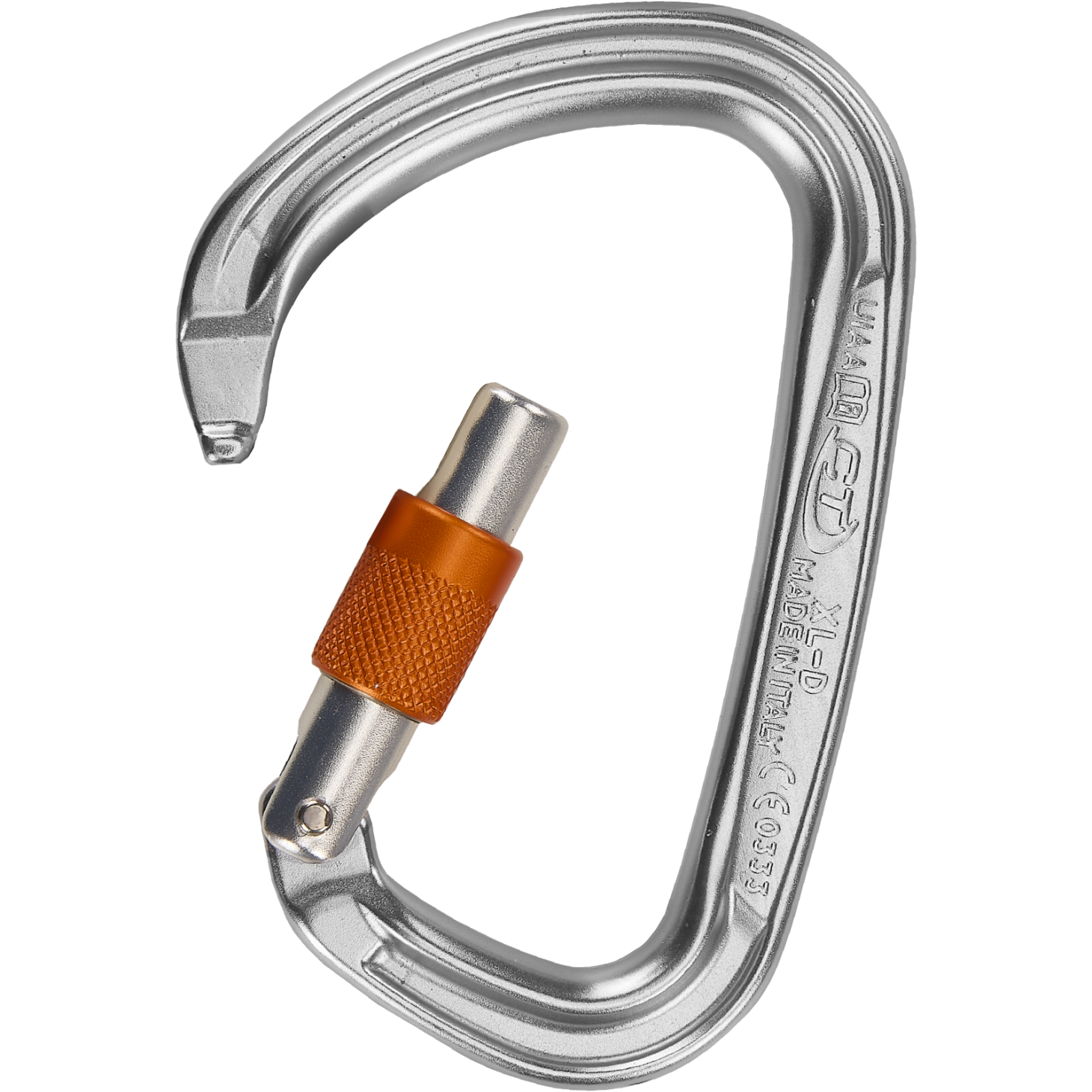

XL-D SG (H-309-SG) - Image 2

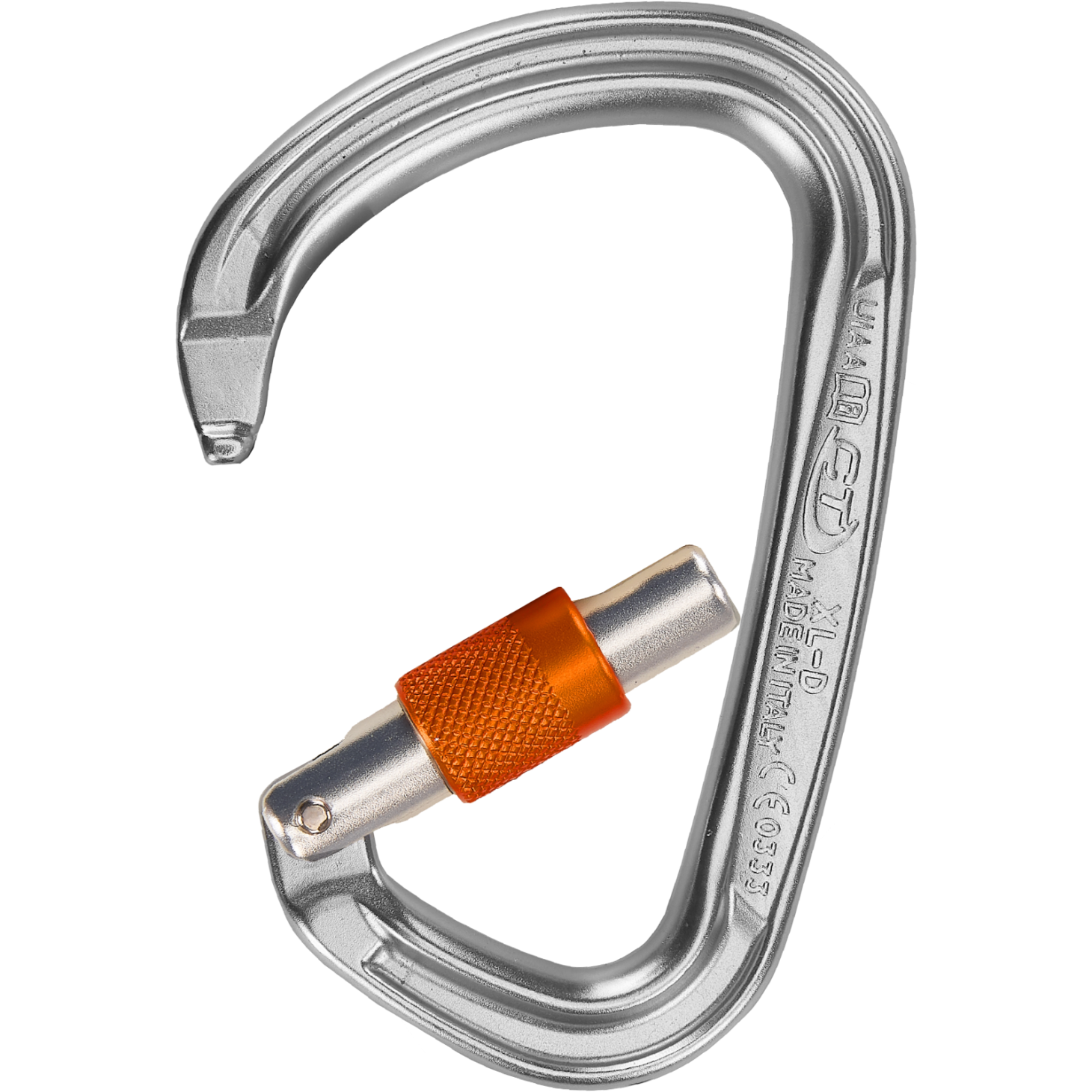

XL-D SG (H-309-SG) - Image 3

XL-D SG (H-309-SG)

$39.00

Categories: , ,

Description

Hot-forged connecting elements made of light metal, wide base and screw cap, max. gate opening of 29 mm

  • Optimized: Double-T profile for excellent weight/resistance ratio
  • Spacious: Large opening and interior for easy handling
  • Efficient: Catch-Free closure system for smooth clipping and unclipping, compatible with FIX PRO+ positioning bracket
Select a variation to see product details.
Select a variation to see downloads.

Product Details

Anti-twist device No
Application areas Arborists
Brand Climbing technology
Carabiner properties Corrosion resistance
Carabiner type Type B (EN 362:2004), Type B (EN 12275:2013)
Fallindicator No
Form fit Key Lock
Gate opening 29 mm
MBS GATE OPEN 10 kN
MBS MAJOR AXIS 28 kN
MBS MINOR AXIS 12 kN
Maximum lifetime 30 years
Maximum temperature 45 °C
Minimum temperature -35 °C
Standard ANSI No
Standard CSA No
Swivel No
UIAA compliance No
Usable in SEAL PAC Not rated
Material Aluminium
Colour Grey, Orange, Silver
Customs tariff number 76169990
E-class number 40-21-07-12
Gross weight 0.08 kg
Locking mechanism Screwgate
Net weight 0.08 kg
Standards EN 362:2004/B, EN 12275:2013/B

Downloads

Datasheets – XL-D SG User manuals, data sheets and declaration of conformity (external) – click here
