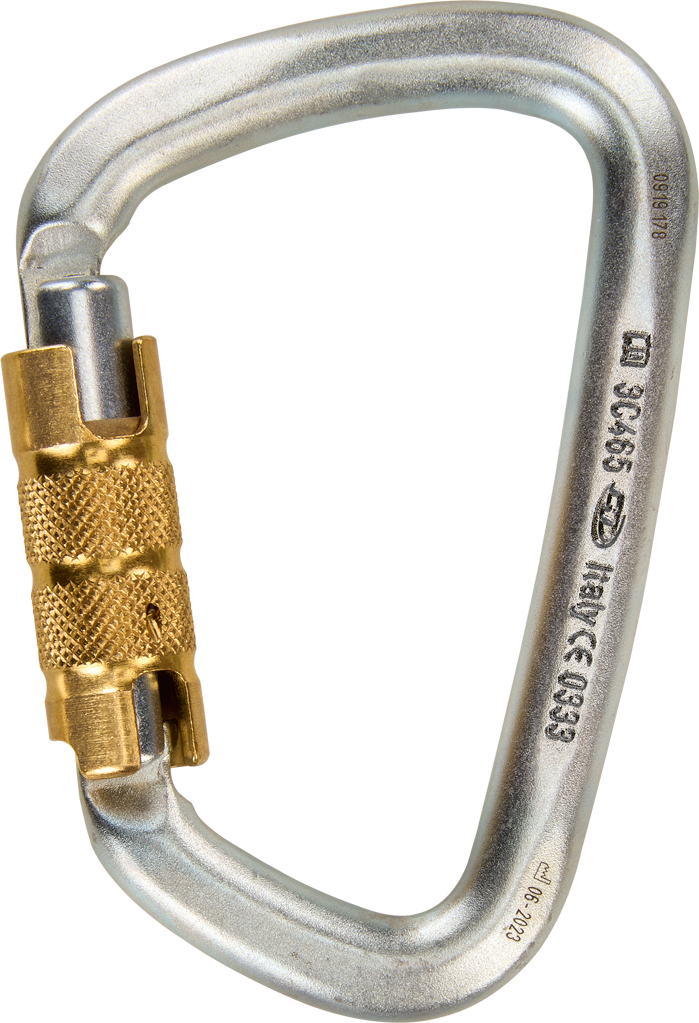

LARGE STEEL TG (H-305-TG)

LARGE STEEL TG (H-305-TG)

$50.00

Categories: , ,

Description

Wide zinc steel base with automatic triple lock, max. gate opening of 25 mm

  • Large opening and spacious interior
  • robust profile with great load capacity
  • Equipped with Catch-Free closure system for smoother clipping in/out
Select a variation to see product details.
Select a variation to see downloads.

Product Details

Anti-twist device No
Application areas Various
Brand Climbing technology
Carabiner properties Corrosion resistance
Carabiner type Type M (EN 362:2004)
Fallindicator No
Form fit Key Lock
Gate opening 25 mm
MBS GATE OPEN 20 kN
MBS MAJOR AXIS 50 kN
MBS MINOR AXIS 15 kN
Maximum lifetime 30 years
Maximum temperature 45 °C
Minimum temperature -35 °C
Standard ANSI No
Swivel No
UIAA compliance No
Usable in SEAL PAC Not rated
Material Steel
Colour Silver
Customs tariff number 73269098
E-class number 40-21-07-12
Gross weight 0.26 kg
Locking mechanism Trilock
Net weight 0.26 kg
Standards EN 362:2004/M

Downloads

Datasheets – LARGE STEEL TG User manuals, data sheets and declaration of conformity (external) – click here
