OVX SG (H-298-SG)

$36.00

Categories: , ,

Description

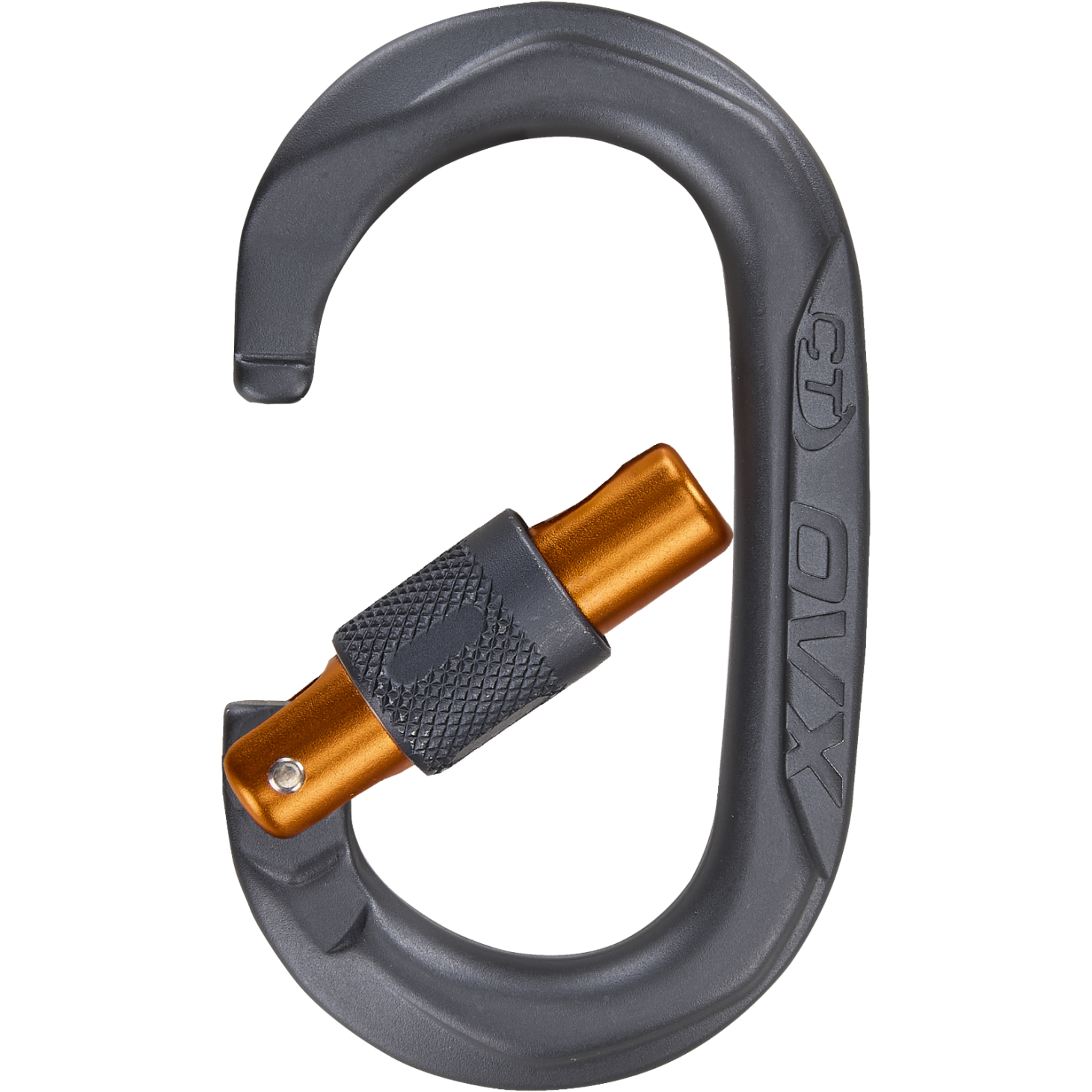

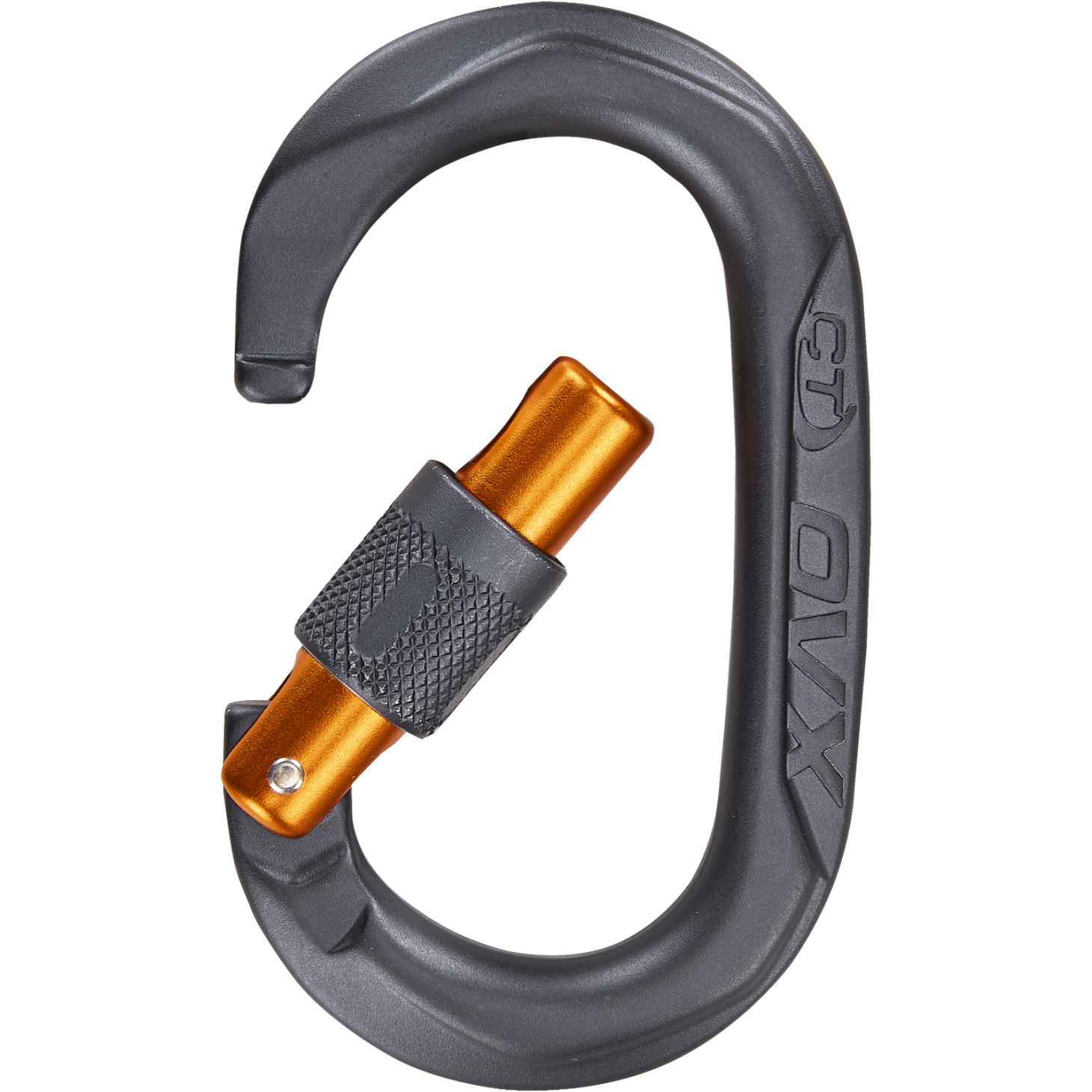

Oval carabiner made of hot-forged light metal with screw lock, max. gate opening of 17 mm

  • Compact: Length of only 9.5 cm for reduced maneuvering space
  • Ergonomic: curved shape improves opening and handling of the snapper
  • Optimized: Oval shape and increased cross-section for better gliding and wear resistance of the rope
Select a variation to see product details.
Select a variation to see downloads.

Product Details

Anti-twist device No
Application areas Tactical approach, Arborists, Rope access, Rescue
Brand Climbing technology
Carabiner category Locking carabiner
Carabiner properties Corrosion resistance
Carabiner shape Oval carabiner
Carabiner type Type B (EN 362:2004), Type B (EN 12275:2013)
Fallindicator No
Form fit Key Lock
Gate opening 17 mm
MBS GATE OPEN 7 kN
MBS MAJOR AXIS 24 kN
MBS MINOR AXIS 9 kN
Maximum lifetime 30 years
Maximum temperature 45 °C
Minimum temperature -35 °C
Standard ANSI No
Standard CSA No
Swivel No
UIAA compliance Yes
Usable in SEAL PAC Not rated
Material Aluminium
Colour Orange, Anthracite
Customs tariff number 76169990
E-class number 40-21-07-12
Gross weight 0.06 kg
Locking mechanism Screwgate
Net weight 0.06 kg
Standards EN 362:2004/B, EN 12275:2013/B, UIAA 121

Downloads

Datasheets – OVX SG User manuals, data sheets and declaration of conformity (external) – click here
