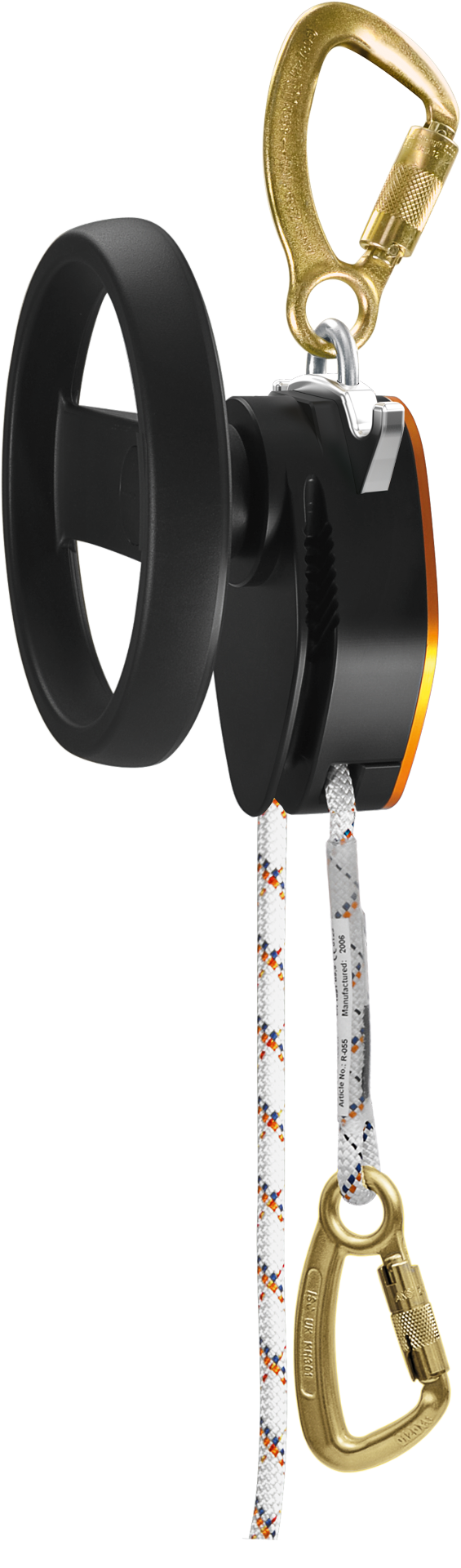

MILAN 2.0 HUB (A-028)

$2,768.00

Description

For safe detachment and abseiling, user weight up to 280 kg, intuitive operation and durable

  • Versatile rescue: standard rescue device with lifting function for the safe lifting and lowering of casualties weighing up to 280 kg
  • Durable and efficient: extended service life of up to 30 years with special SEAL PACs, intuitive operation thanks to integrated rope guide and brake
  • Professional use: Optimized for accompanied rescue, requires training by certified SKYLOTEC instructors
Select a variation to see product details.
Select a variation to see downloads.

Product Details

Application areasRescue
Lifting functionYes
Max. Abseil speed0.90 m/s
Max. abseiling height500 m
Maximum compatible rope diameter9.00 mm
Maximum lifetime20 years
Maximum load280.00 kg
Maximum load 1 person141.00 kg
Maximum load 2 persons280.00 kg
Maximum temperature60 °C
Minimum compatible rope diameter9.00 mm
Minimum temperature-35 °C
Panic functionNo
Rescue functionYes
Usable in SEAL PACYes
MaterialAluminium, Polyamide, Steel
Maximum number of persons2
ColourBlack, Orange, White
Customs tariff number84251900
E-class number40-21-01-01
Gross weight3.13 kg
Net weight3.13 kg
StandardsANSI Z359.9-2021, EN 341:2011/1A, EN 1496:2017/A, MEETS CSA Z259.2.3:16/1/B



Downloads

User manuals – MILAN 2.0 HUB Datasheets – MILAN 2.0 HUB Declaration of conformity – A-028 – MILAN 2.0 HUB , MILAN 2.0 HUB , MILAN 2.0 HUB , MILAN 2.0 HUB
